- D R E M O -

Torque Testing Unit
Testing of LUER-Lock Fittings according to ISO 594

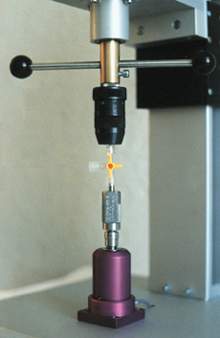

DREMO - click to enlarge

Technical Performance:

  • high sensitive torque sensor
    +/- 300 mNm
  • overload safety
  • pre-loadable torque unit
  • height adjustable torque unit
    and fitting holder

Measuring Electronics and
Operator Panel:

  • selectable modes
  • maximum value hold
  • adjustable upper and
    lower threshold
  • selectable scale



Testing of LUER-Lock Fittings
according to ISO 594

  • ease of assembly
  • unscrewing torque
  • overriding resistance
  • preparation (assembly)
    of fittings for
    leakage,
    stress cracking and
    separation force tests

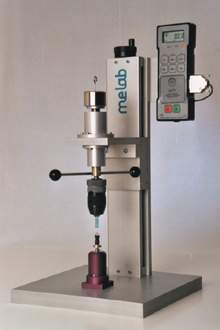

 DREMO - click to enlarge

For this tests reference gauges are needed as described
in the ISO 594 - see LUER-GAUGES.

1.2-010320
